REMOTE PROGRAM STATION

SECPS

REMOTE PROGRAM STATION

SKU: SECPS

Qty:

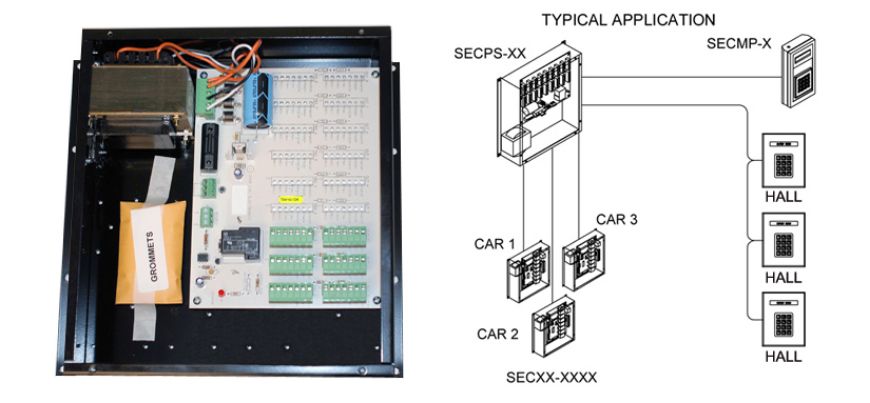

This unit allows you to power and programs multiple units from a remote location. Typical applications would include security access for hall call buttons, stairwells, garage, etc. Up to 16 SEC01-XXXX may be daisy chained together and programmed from this central location. 8 elevator car units can also be hooked to this module for programming. An onboard override will turn off the remote-powered SEC01 units as long as an external input signal is present. Must purchase handheld unit for actual programming.

Documentation:

Catalog Page

Features:

> Easy installation

> Pluggable connections

> RS485 Interface

> Uses handheld programmer

> Programming ports for up to 8 cars

> On board power supply capable of driving 16 remotes SEC01

Dimensions:

> 11.00"W x 11.00"H x 3.375"D

Notes:

1. If a special voltage is required, please consult factory.
