PASSING CHIME BOARD

MPCB1
ADA Voice and Chime;
Speak to a Rep Speak to a Rep
Find Specs Find Specs
Picture of PASSING CHIME BOARD

PASSING CHIME BOARD

SKU: MPCB1

Small compact adaptor can be used with various C.E. position indicator families. The chime is hooked up via 4 wires to the P.I. requiring no additional external wiring. The chime board gives an audible signal indication whenever a floor is passed in either direction. The volume and decay are adjustable on the unit. The passing chime can be mounted directly to the display or can be attached by velcro to a nearby surface.

Documentation:

Features:

> Small, compact
> Adjustable volume
> Adjustable decay
> No external wiring
> Inexpensive
> Easy Installation
> Conforms to ADAAG 4.10.13

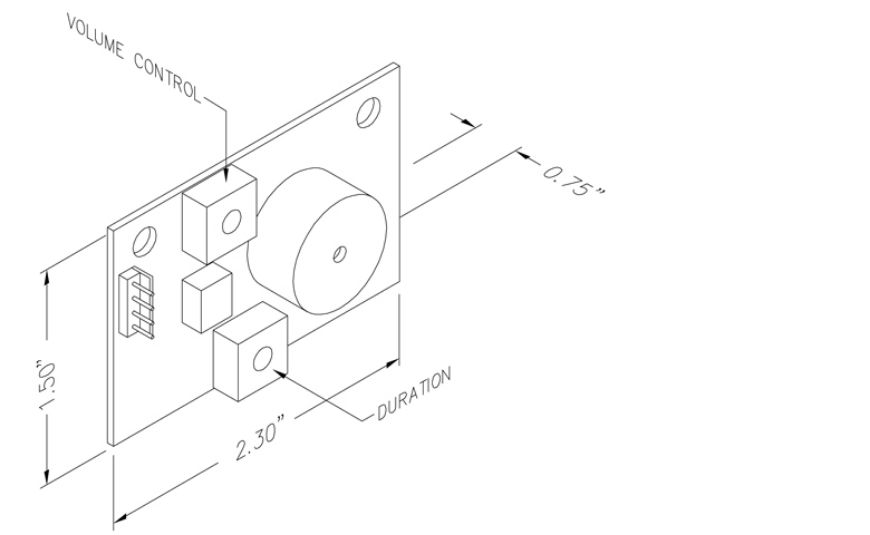

Dimensions:

> 2.30"W x 1.50"H x 0.75"D

Notes:

1. This is not a stand-alone device. Must be used in conjunction with a C.E. display.
