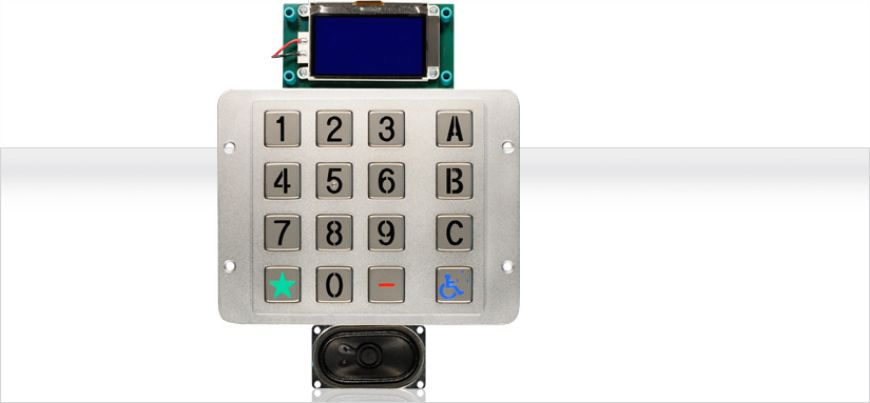

OTIS KEYPAD FOR ELITE TOUCH ®

OKYLCD4

OTIS KEYPAD FOR ELITE TOUCH ®

SKU: OKYLCD4

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The keypad is part of our Elite Touch® product line to maintain code compliance where pushbuttons are still necessary, as well as provide a back up in the event the touchscreens are out of service.

Documentation:

Catalog Page
Panel Prep

Typical Applications:

> Car Operating Panel

Features:

> Stainless Steel keys

> 16mm high characters

> 8 ohm Speaker

Dimensions:

> Overall: 7.5625"W x 9.75"H x 1.50"D

___Display: 4.3125"W x 2.25"H x 1.50"D

___Keypad: 7.5625"W x 5.875"H x 1.50"D

___Speaker: 2.875"W x 1.625"H x 1.50"D

Notes:

> Maximum distance from the keypad for display and speaker is 10 inches

> For use with Elite Touch units

> Power Supply #40102412 with Bracket #70000280 is recommended

> Templates available for specific mounting dimensions

* If using CIB-O no Power Supply is required or if 24VDC is available in the COP no Power Supply is required.
