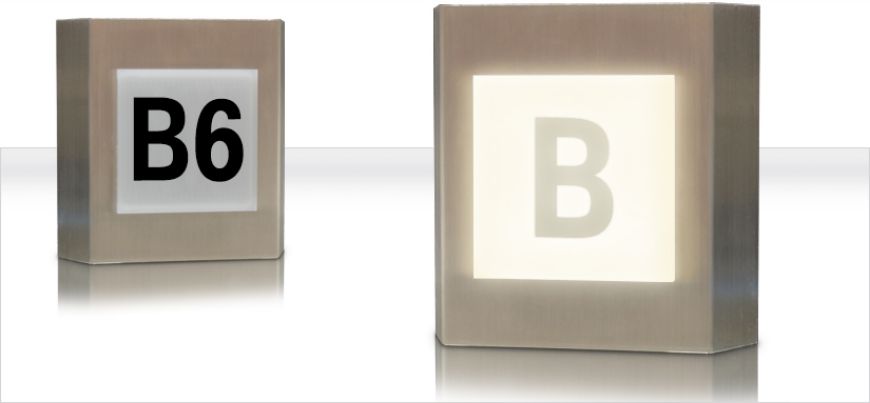

LED Destination Cube in a metal hall fixture

MLBOX

LED Destination Cube in a metal hall fixture

SKU: MLBOX

Colors Available

Qty:

Long life, solid state LED's with a 100,000 hour rated life. Accepts existing signals over the MICRO COMM link. This has a raised lens giving you 180° viewing. The unit is also equipped with an arrival speaker and destination tones. The programming is dip switch selectable.

Must specify elevator car character.

Documentation:

Catalog Page
Wiring Diagram General
E-Flyer

Typical Applications:

> Hall / Destination Display

> 180° viewing angle lantern

Features:

> 3" characters (Front View)

> 180° viewing angle lantern

> 1-year factory warranty

> Includes Speaker for tones (optional)

> MICRO COMM input

> Optional destination voice card - additional cost

__Note: When adding voice board, this will include our 9SPKRASY03 SPEAKER

Dimensions:

> 5.000"W x 5.000"H x .375"D

Notes:

Some features may not be available for your system. Please check with your manufacturer or engineering for special features.
