DISCRETE PASSING CHIME

MDPCB
ADA Voice and Chime;
Speak to a Rep Speak to a Rep
Find Specs Find Specs
Picture of DISCRETE PASSING CHIME

DISCRETE PASSING CHIME

SKU: MDPCB

Discrete passing chime gives an audible response when a floor is passed in either direction. The unit is also available with several options, such as: Arrival gong, nudging buzzer, and fire alarm. This unit was designed to meet with ADA requirements.

Documentation:

Features:

> On-board decoding

> Isolated inputs

> Self-contained unit

> Dual volume control

> 2 speaker outputs

> Low cost

> Micro processor control

> Error detection and correction feature

> Conforms to ADAAG Sec. 4.10.4, 4.10.13

Typical Applications:

> Car-op panel or transom

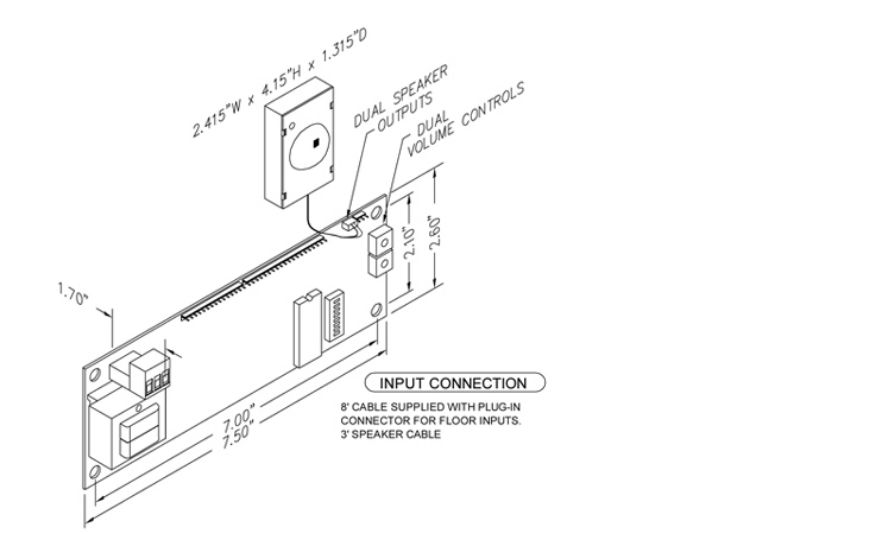

Dimensions:

> 7.50"W x 2.60"H x 1.70"D

> Speaker: 2.415"W x 4.15"H x 1.315"D
