C.O.P. LAMP DRIVER

COPLD1
Other elevator accessories ;
Speak to a Rep Speak to a Rep
Find Specs Find Specs
Picture of C.O.P. LAMP DRIVER

C.O.P. LAMP DRIVER

SKU: COPLD1

The C.O.P. Lamp driver was designed to illuminate the pushbutton lamps, requiring no extra wiring from the machine room. This unit is offered with a choice of options to include passing chime output and/or call accept chime.





Documentation:

Features:

> Easy installation

> Includes 8ft. cable

> Fire key clears all lamps

> Micro processor controlled

> P.I. cancels individual lamp

> MICRO COMM input for lamp cancellation

> Conforms to ADA AG 4.10.12(2)

> 8 inputs / 8 outputs main and auxiliary

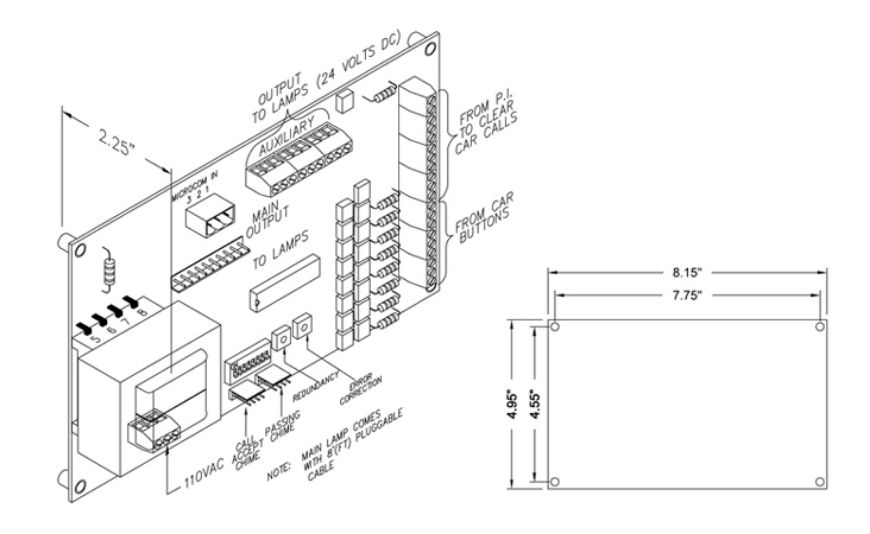

Dimensions:

> Vertical: 8.15"W x 4.95"H x 2.25"D

Notes:

• MUST USE 6, 24, 28, 30VDC LAMPS/LEDS 72ma MAX
