75mm Single Character

Vertical Board / European / DOT Matrix Indicator

EV130

75mm Single Character

Vertical Board / European / DOT Matrix Indicator

SKU: EV130

Colors Available

Qty:

Dot Matrix LED Digital Indicator for floor position display, as well as car direction, if desired. Any alphanumeric or custom character can be displayed in single digit floor designations.

Documentation:

Catalog Page
Wiring Diagram Discrete
Wiring Diagram Micro Comm

Typical Applications:

> Car-OP Panel

> Transom-car or Hall

Features:

> Low-cost design

> Self-contained unit

> Latched input

> Scrolling & roll over

> Hall lantern option

> Passing chime output

> Self Testing

> Message inputs

> Error detection and correction feature

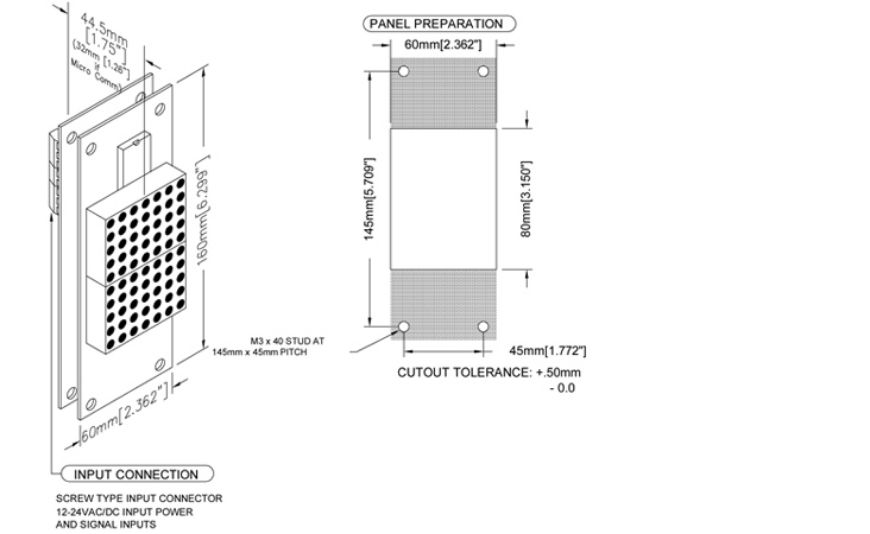

Dimensions:

> 60mm W x 160mm H x 44.5mm D | 2.362"W x 6.299"H x 1.75"D

Notes:

1. If a special voltage is required, please consult the factory.

2. A supply of 12-24VAC/DC positive or negative is also required.

3. *This is not a stand-alone unit. Must be used in conjunction with a MICRO COMM interface.
