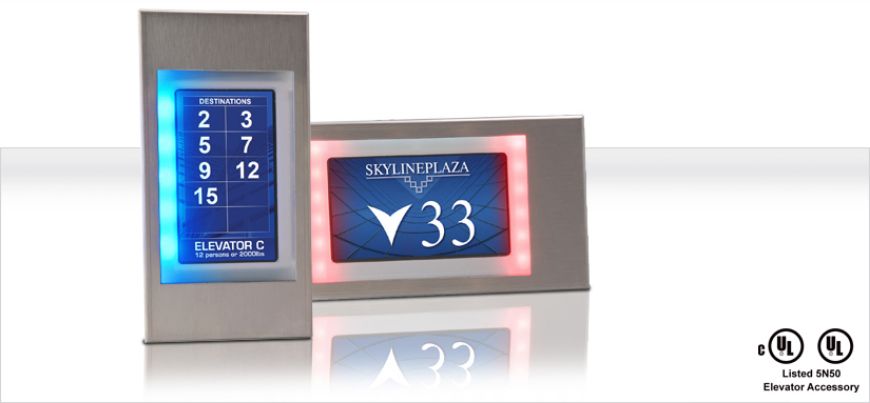

The Mini PI is a flexible information indicator that can be customized for any building or corporation. This customization can reflect architectural elements, color schemes, and corporate identity. Within this customization, information can be presented to passengers regarding the elevator's current position and direction, arrival arrows along with priority messages from the controller. It's also designed to be a destination-type display showing floors served when in destination mode. These units also have a non-movement blanking to help preserve backlight life.
> Car operating panel> Car transom> Lobby / arrival> Destination Display> Messaging
> Passing chime output> Self-testing> USB Updatable> Low profile> Destination Display> Backlight saver function / default on> Otis RSL input
> SNAP-IN: 3.75" W x 7.25"H x 2.500"D | 95.25mm W x 184.15mm H x 63.50mm D> BASIC: 7.00"W x 3.500"H x 2.500"D | 177.80mm W x 88.90mm H x 63.50mm D
Some features may not be available for your system. Please check with your manufacturer or engineer for special features.
