4.3” Mini TFT Position Indicator

EMN43

4.3” Mini TFT Position Indicator

SKU: EMN43

Qty:

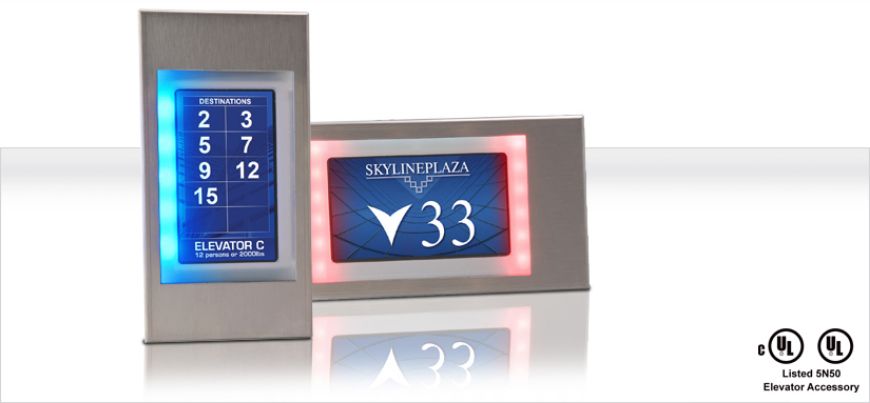

The Mini PI is a flexible position indicator which can be customized for any building or corporation. This customization can reflect architectural elements, color schemes, and corporation identity. Within this customization, information can be presented to passengers regarding the elevator's current position and direction, arrival arrows along with priority messages from the controller. It's also designed to be a destination-type display showing floors served when in destination mode.

These units also have a non-movement blanking to help preserve backlight life.

Documentation:

Typical Applications:

> Car operating panel

> Car transom

> Lobby/arrival

> Messaging

> Destination Display

Features:

> Passing Chime Output

> USB Updatable

> Self Testing

> Low Profile

> Destination Display

> Backlight Saver Function

> MICRO COMM Input

> Voice Capabilities

Dimensions:

> Verticle: 3.75"W x 7.25"H x 1.7"D | 95.25mm W x 184.15mm H x 50.80mm

> Horizontal: 7.00"W x 3.5"H x 1.7"D | 177.80mm W x 88.90mm H x 50.80mm

Notes:

Some features may not be available for your system. Please check with your manufacture or engineering for special features.
