30mm Triple Character

Horizontal Board / European / DOT Matrix Indicator

EH310

30mm Triple Character

Horizontal Board / European / DOT Matrix Indicator

SKU: EH310

Colors Available

Qty:

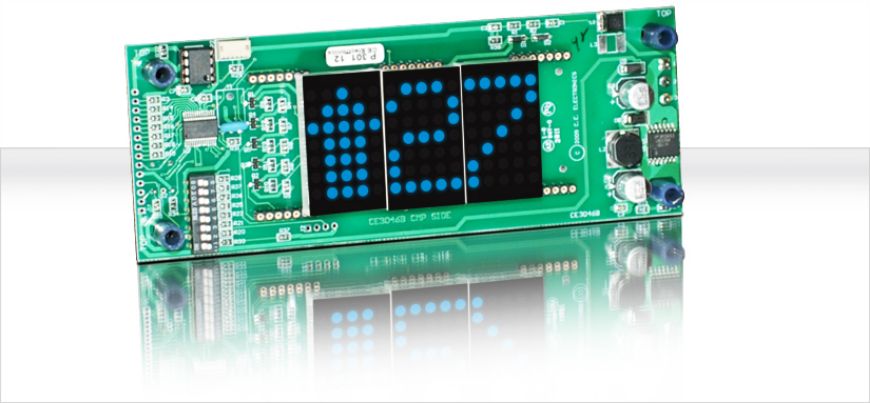

Dot Matrix LED Digital Indicator for floor position display, as well as car direction if desired. Any alphanumeric or custom character can be displayed in either single digit with separate "UP" and "DOWN" arrows. Double-digit with a single "UP/DOWN" arrow, or triple-digit floor designations.

Documentation:

Catalog Page
Wiring Diagram Discrete
Wiring Diagram Micro Comm

Typical Applications:

> Car-OP Panel

> Transom-car or Hall

Features:

> Low-cost design

> Self-contained unit

> Latched input

> Scrolling & roll over

> Hall lantern option

> Passing chime output

> Self Testing

> Message inputs

> Error detection and correction feature

Dimensions:

> 160mm W x 60mm H x 44.5mm D | 6.299"W x 2.362"H x 1.75"D

Notes:

1. If a special voltage is required, please consult factory.

2. A supply of 12-24VAC/DC positive or negative is also required.
