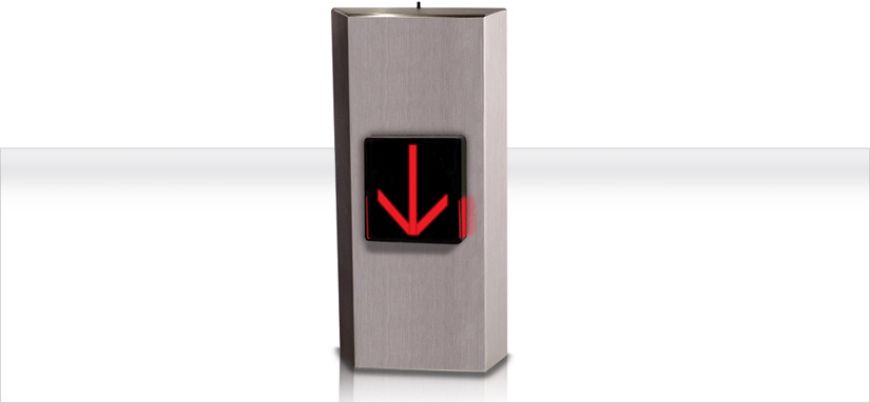

3” Single Independent Direction Arrow

Contained in a standard metal fixture / Vertical with side bars / OTIS RSL

OV911

3” Single Independent Direction Arrow

Contained in a standard metal fixture / Vertical with side bars / OTIS RSL

SKU: OV911

Arrows Colors Available

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Long life, solid state bi-color, white or blue arrow for lanterns, 100,000 hour rated life. Accepts existing signals over the Otis RSL link. It includes a bi-color arrow which is green in the up direction and red in the down with matching side bars for 180° viewing. The unit is also equipped with an arrival gong. The programming is dip switch selectable.

Documentation:

Typical Applications:

> Hall and car lanterns

> P.I. combo with 180° viewing angle

Features:

> Bi-color, solid white or solid blue 3-inch arrow

> 2-inch characters

> Solid side bar/arrow

> 180° viewing angle lantern

> 1-year factory warranty

> Conforms to ADAAG 4.10.4

> Includes gong

> RSL input

> ECA capable

Dimensions:

> 3.50"W x 7.50"H | 3.0" LED Extended Arrow

Notes:

> 1.375 inch minimum depth of unit
