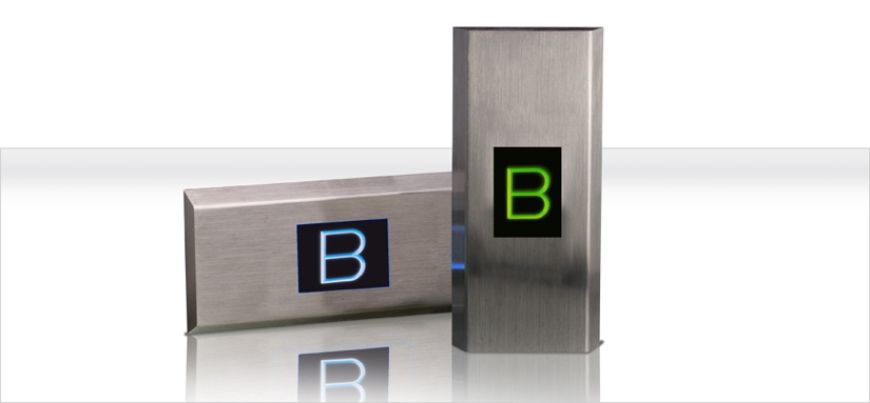

2.5” LED Destination Block in a metal hall fixture

MPENDANT

2.5” LED Destination Block in a metal hall fixture

SKU: MPENDANT

Long life, solid state LED's with a 100,000 hour rated life. Accepts existing signals over the MICRO COMM link. Destination characters are available in one of multiple colors for viewing. The unit is also equipped with an arrival speaker and destination tones. The programming is dip switch selectable. The colors available are white, green, red, blue, and amber.

Must specify elevator car character.



Typical Applications:

Destination Characters

Features:

2 1/2" characters

1-year factory warranty

Includes speaker for tones

MICRO COMM input

Optional Metal

Optional destination voice card - additional cost

__Note: When adding voice board, this will include our 9SPKRASY03 SPEAKER

Dimensions:

Horizontal - 14"W x 6.5"H x 2"D   |   Vertical - 6.5"W x 14"H x 2"D



Notes:

Lead times vary

Some features may not be available for your system. Please check with your manufacturer or engineering for special features.
