2.2" Single Character / 2.5” Independent Direction Arrow

Vertical Board / OTIS RSL Segmented PI
OV122A
Otis Segmented PI;
Speak to a Rep Speak to a Rep
Find Specs Find Specs
Picture of 2.2" Single Character / 2.5” Independent Direction Arrow

2.2" Single Character / 2.5” Independent Direction Arrow

Vertical Board / OTIS RSL Segmented PI
SKU: OV122A
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Segmented LED, digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed

Documentation:

Typical Applications:

> Car-OP Panel
> Transom-car or Hall
> Surface mount fixtures

Features:

> Otis RSL Interface
> 4 Pin Header
> Latched inputs
> Cross wire protected
> Self-testing
> Passing chime output

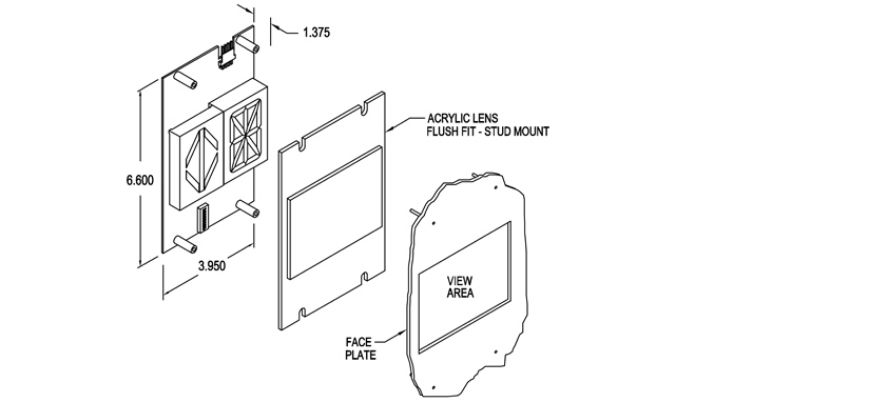

Dimensions:

> 3.950"W x 6.600"H x 1.375"D  |  2.2" CHARACTER  |  2.5" ARROW

Notes:

1. This is not a stand-alone unit. Must be used in conjunction with an OTIS RSL interface.
