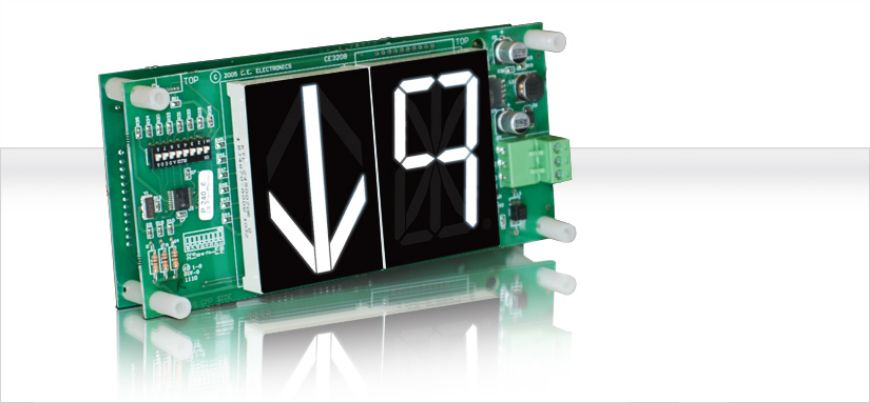

Segmented LED main digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed in single-digit floor designations.
> Car-OP Panel> Transom-car or Hall
> Self contained> Auxiliary output> Latched inputs> On board power supply> Self testing> Passing chime output> Error detection and correction feature> UL> 8 Inputs & Up/Down
> 6.6"W x 3.1"H x 2.75"D | 2.2" CHARACTERS | 2.5" ARROW
1. *May need additional decoder card.
2. If a special voltage is required, please consult factory.
3. Required 110VAC or optional 220VAC - Consult factory for 220AC
