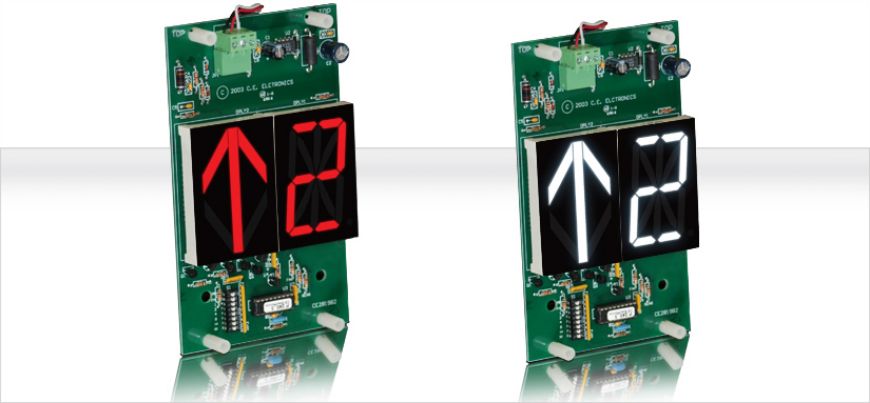

Picture of 2.2" Single Character / 2.5” Independent Direction Arrow

2.2" Single Character / 2.5” Independent Direction Arrow

Vertical Board / Micro Comm Segmented PI
SKU: MV122A

Segmented LED, digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed.

Documentation:

Typical Applications:

> Car-OP Panel
> Transom-car or Hall
> Surface mount fixtures

Features:

> Ultra-thin package
> Fast, 3-wire hookup
> Latched inputs
> Cross wire protected
> Self-testing
> Alternate message
> Passing chime output
> Error detection and correction feature

Dimensions:

> 3.950"W x 6.600"H x 1.375"D  |  2.2" CHARACTER  |  2.5" ARROW

Notes:

1. This is not a stand-alone unit. Must be used in conjunction with a MICRO COMM interface.
