2.2" Single Character

Vertical Board / Micro Comm Segmented PI
MV122
Micro Comm Displays;
Speak to a Rep Speak to a Rep
Find Specs Find Specs

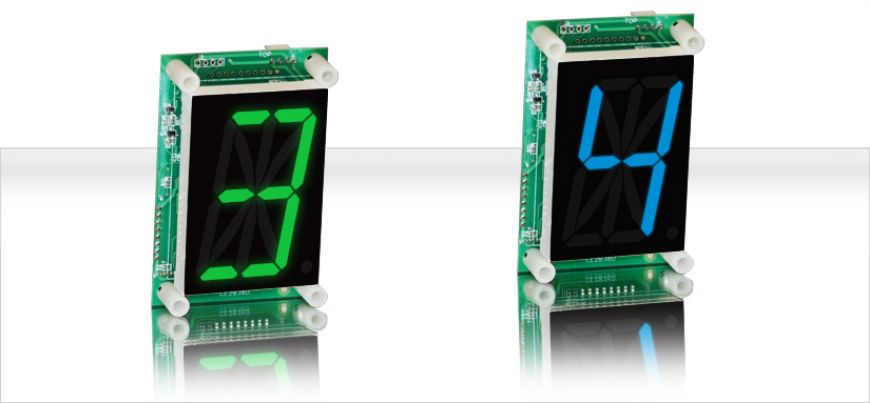

Picture of 2.2" Single Character

2.2" Single Character

Vertical Board / Micro Comm Segmented PI
SKU: MV122

Segmented LED, digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed.

Documentation:

Typical Applications:

> Hall stations
> Lobby and security panels

Features:

> Compact packaging
> Fast, 3-wire hookup
> Latched inputs
> Cross wire protected
> Self-testing
> Alternate message
> Passing chime output
> Error detection and correction feature

Dimensions:

> 2.30"W x 3.45"H x 1.625"D  |  2.2" CHARACTER

Notes:

1. This is not a stand-alone unit. Must be used in conjunction with a MICRO COMM interface.
