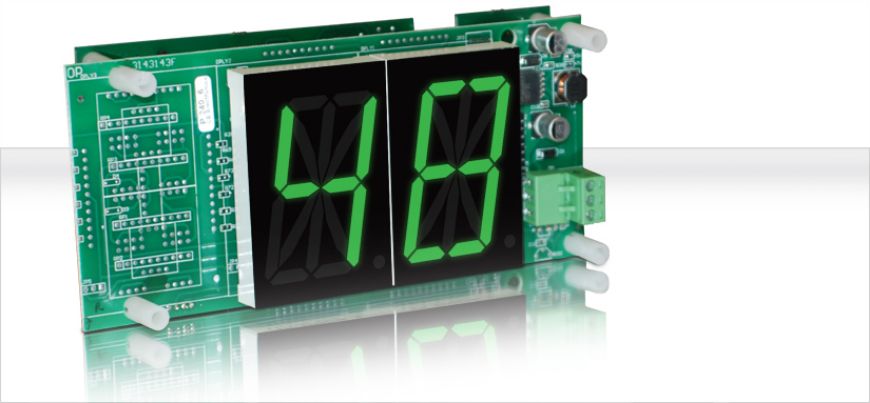

2.2" Double Character

Horizontal Board / Discrete Segmented PI

SH222

2.2" Double Character

Horizontal Board / Discrete Segmented PI

SKU: SH222

Colors Available

Qty:

Segmented LED main digital indicator for floor position. Any alphanumeric character can be displayed single digit or double-digit floor designations.

Documentation:

Catalog Page
Wiring Diagram General
E-Flyer

Typical Applications:

> Car-OP Panel
> Transom-car or hall

Features:

> Self contained
> Auxiliary output
> Latched inputs
> On board power supply
> Self testing
> Passing chime output
> Error detection and correction feature
> UL
> 8 inputs

Dimensions:

> 6.7"W x 3.1"H x 2.75"D | 2.2" CHARACTERS

Notes:

1. *May need additional decoder card.

2. If a special voltage is required, please consult factory.

3. Required 110VAC or optional 220VAC - Consult factory for 220AC
