Picture of 2.2" Double Character / 2.5” Independent Direction Arrow

2.2" Double Character / 2.5” Independent Direction Arrow

Horizontal Board / OTIS RSL / OTIS Luxury series Mounting
SKU: OLHAD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Long life, solid state bi-color arrow for lanterns, 100,000 hour rated life. Accepts existing signals over the Otis serial CDL link. The unit has a double digit 2" display. It includes a bi-color arrow which is green in the up direction and red in the down. The unit is also equipped with an arrival gong.

Documentation:

Typical Applications:

> Hall and car lanterns

Features:

> Otis luxury series mounting
> Double digit 2.2" LED display
> Bi-color
> Red down / green up
> 1-year factory
> Conforms to ADAAG 4.10.4
> Includes gong

Dimensions:

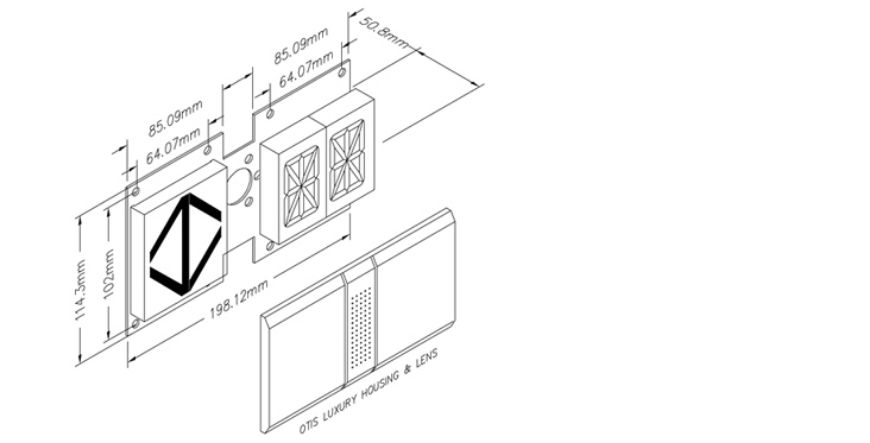

> 198.12mm W x 114.3mm H x 50.8mm D     |     3.0" ARROW

Notes:

Otis standard lens must be modified to accept this configuration.
