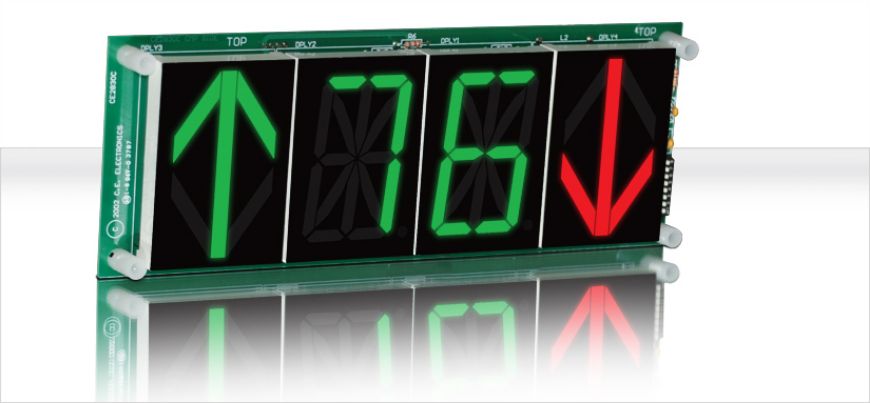

Picture of 2.2" Double Character / 2.5” Dual Independent Direction Arrow

2.2" Double Character / 2.5” Dual Independent Direction Arrow

Dual Sided Arrow Orientation / Horizontal Board / Micro Comm Segmented PI
SKU: MH522

Segmented LED, digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed in either single or double digit floor designations.

Documentation:

Typical Applications:

> Car-OP Panel
> Transom-car or Hall

Features:

> Latched inputs
> Cross wire protected
> Self Testing
> Alternate Message
> Passing chime output
> Error detection and correction feature
> Low Profile

Dimensions:

> 8.61"W 3.20"H x 1.75"D   |   2.2" CHARACTERS   |   2.5" ARROWS

Notes:

1. This is not a stand-alone unit. Must be used in conjunction with a MICRO COMM interface.
