2" Double Character with 3” Independent Direction Arrow

Contained in a standard metal fixture / Horizontal / OTIS RSL

OHETC

2" Double Character with 3” Independent Direction Arrow

Contained in a standard metal fixture / Horizontal / OTIS RSL

SKU: OHETC

Colors Available

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

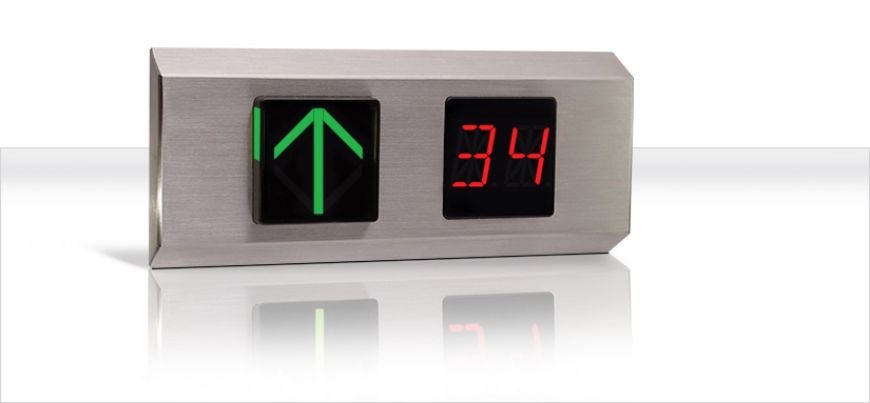

Long life, solid state bi-color, white or blue arrow for lanterns, 100,000 hour rated life. Accepts existing signals over the Otis RSL link. The unit has a double-digit 2-inch display. It includes a bi-color arrow which is green in the up direction and red in the down with matching side bars for 180° viewing. The unit is also equipped with an arrival gong. The programming is dip switch selectable.

Documentation:

Typical Applications:

> Hall and car lanterns
> P.I. combo with 180° viewing angle

Features:

> Bi-color, solid white or solid blue 3-inch arrow
> 2-inch characters
> Solid side bar/arrow
> 180° viewing angle lantern
> 1-year factory warranty
> Conforms to ADAAG 4.10.4
> Includes gong
> RSL input
> ECA capable

Dimensions:

> 9.25"W x 4.30"H | 3.0 inch ARROW | 2 inch CHARACTERS

Notes:

> 1.5 inch minimum depth of unit
