17.7mm Triple Character

Vertical Board / European / DOT Matrix Indicator

EV207

17.7mm Triple Character

Vertical Board / European / DOT Matrix Indicator

SKU: EV207

Colors Available

Qty:

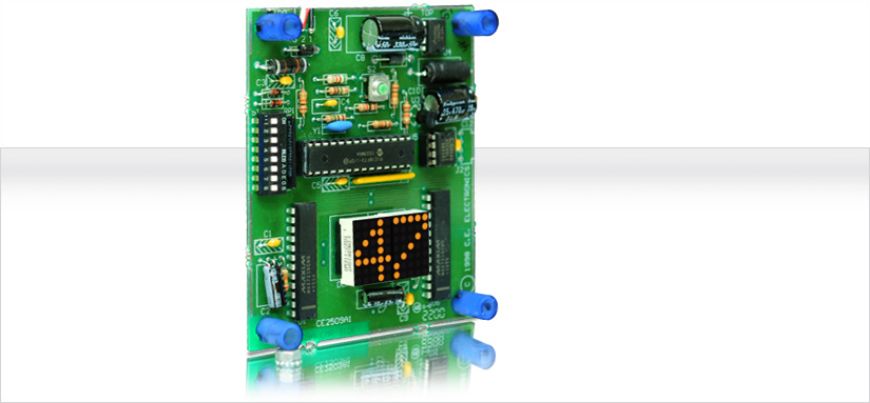

Dot Matrix LED Digital Indicator for floor position display, as well as car direction if desired. Any alphanumeric or custom character can be displayed in either single digit with an arrow or double-digit floor designations.

Documentation:

Catalog Page
Wiring Diagram General

Typical Applications:

> Car-OP Panel

> Transom-car or Hall

Features:

> Low-cost design

> Self-contained unit

> Latched input

> Scrolling & roll over

> Hall lantern option

> Passing chime output

> Self Testing

> Message inputs

> Error detection and correction feature

Dimensions:

> 3.000"W x 3.600"H x 0.625"D

Notes:

1. This is not a stand-alone unit. Must be used in conjunction with MCCU controller.
