1.5” Double Character / Dual Arrow

Blue Liquid Crystal Segmented Display

MB215

1.5” Double Character / Dual Arrow

Blue Liquid Crystal Segmented Display

SKU: MB215

Colors Available

Qty:

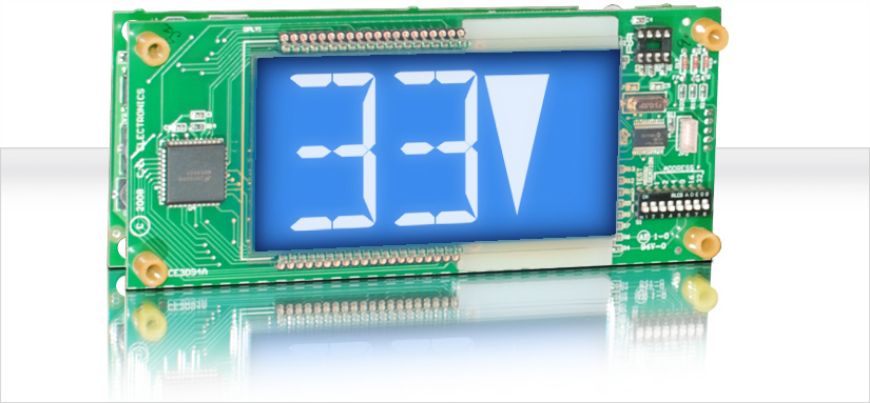

Blue Liquid crystal display indicator with dual digits and arrow for floor position as well as car direction. Any alphanumeric character and up/down arrows can be displayed in either single or double-digit floor designations.

Documentation:

Catalog Page

Typical Applications:

> Car-OP Panel

> Transom

> Car and hall fixtures

Features:

> Long-life LED backlighting

> Fast, 3-wire hookup

> Latched inputs

> Cross wire protected

> Self-testing

> Alternate message

> Passing chime output

> Error detection and correction feature

Dimensions:

> 6.50"W x 2.70"H x 1.625"

Notes:

1. This is not a stand-alone unit. Must be used in conjunction with a MICRO COMM interface.
