1" Single Character / Dual Direction Arrows

Single Sided Vertically Stacked Arrow Orientation / Horizontal Board / Micro Comm Segmented PI

MH510

1" Single Character / Dual Direction Arrows

Single Sided Vertically Stacked Arrow Orientation / Horizontal Board / Micro Comm Segmented PI

SKU: MH510

Colors Available

Qty:

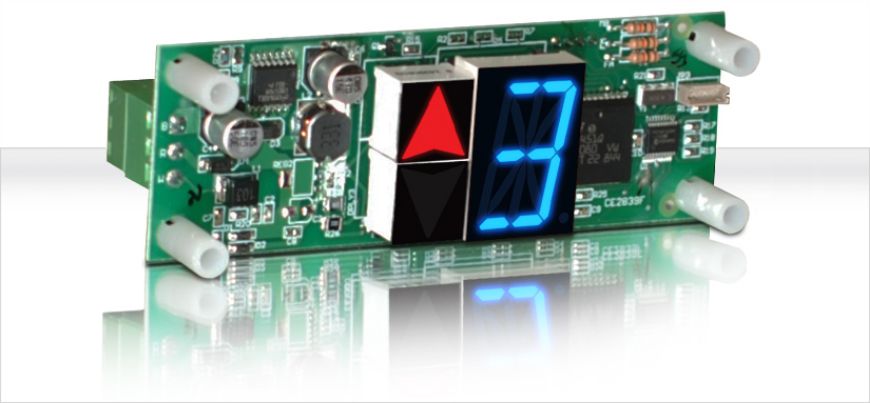

Segmented LED, digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed in single digit floor designations.

Documentation:

Catalog Page

Typical Applications:

> Car-OP Panel
> Transom-car or Hall

Features:

> Fast, 3-wire hookup
> Latched inputs
> Cross wire protected
> Self Testing
> Alternate message
> Passing chime option by request only
> Error detection and correction feature

Dimensions:

> Flush Mount: 4.70"W x 1.6"H x 1.75"W
> Surface Mount: 4.70"W x 1.6"H x 0.5"W

Notes:

1. This is not a stand-alone unit. Must be used in conjunction with a MICRO COMM interface.
