1" Single Character / Dual Direction Arrows

Top and Bottom Stacked Arrow Orientation / Vertical Board / Micro Comm Segmented PI

MSV11

1" Single Character / Dual Direction Arrows

Top and Bottom Stacked Arrow Orientation / Vertical Board / Micro Comm Segmented PI

SKU: MSV11

Digits Colors Available
Arrows Colors Available

Qty:

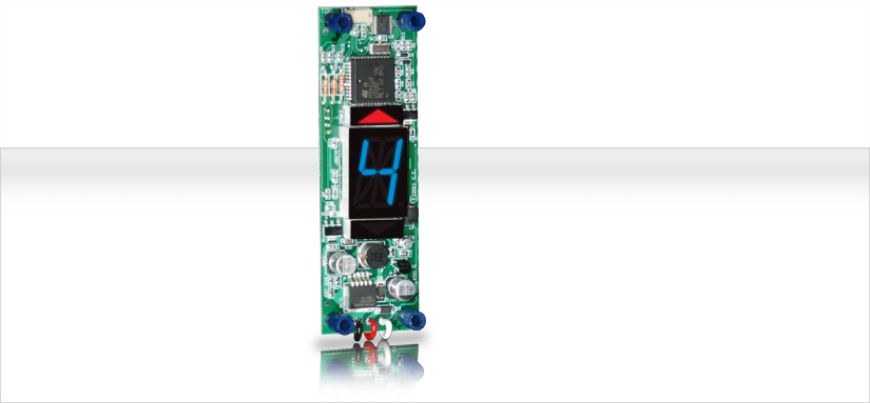

Segmented LED, digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed in single-digit floor designations.

Documentation:

Catalog Page
Wiring Diagram General

Typical Applications:

> Car-OP Panel
> Transom-car or Hall
> Surface mount fixtures

Features:

> Fast, 3-wire hookup
> Latched inputs
> Cross wire protected
> Self-testing
> Alternate message
> Passing chime option by request only
> Error detection and correction feature

Dimensions:

> 1.50"W x 4.70"H x 0.625"D | 1" CHARACTER

Notes:

1. This is not a stand-alone unit. Must be in conjunction with a MICRO COMM interface.

2. Can not have red lens with a non-red display.
