1 inch / SCROLLING MESSAGE DISPLAY

MSL10
Other elevator accessories ;
Speak to a Rep Speak to a Rep
Find Specs Find Specs

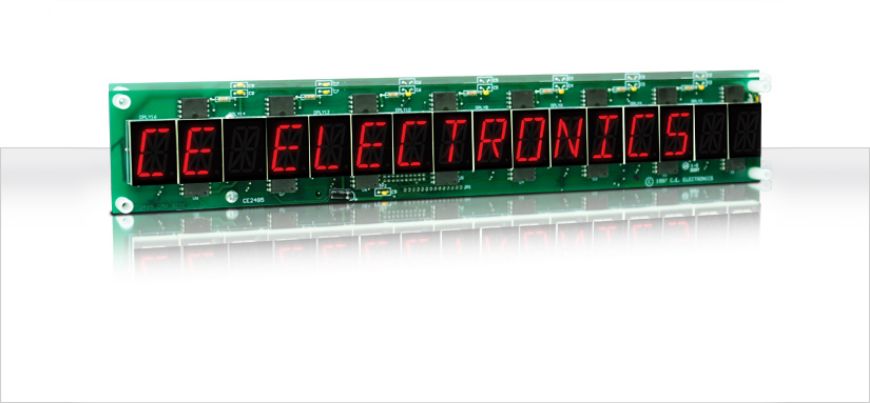

Picture of 1 inch / SCROLLING MESSAGE DISPLAY

1 inch / SCROLLING MESSAGE DISPLAY

SKU: MSL10

Versatile scrolling message displays any alphanumeric characters within a 1 inch LED 16 digit screen. Various messages can be selected via binary inputs or through C.E.'s Micro Comm 3 wire network. When used with MTIME2-X the time, date and temperature can be displayed as part of a message or it can be shown in a static format. The display is capable of 63 different messages (119 characters per message max). The display is capable of continuous scrolling or can be programmed to scroll in and stop then flash.

Documentation:

Features:

> 63 messages

> Scrolling in/Scroll out

> Continuous scroll

> Adjustable flashing

> Adjustable blanking

> Binary inputs

> 10-150VAC/DC inputs

Dimensions:

> 15.30"W x 2.50"H x 2.25"D  |  1" Character

Notes:

1. If a special voltage is required, please consult factory.

2. To display time, date, or temperature, must purchase as a system which includes MTIME2-X and MPROG module. A computer interface is optional.
