1" Double Character / Dual Direction Arrows

Top and Bottom Stacked Arrow Orientation / Horizontal Board / Micro Comm Segmented PI
MH110
Micro Comm Displays;
Speak to a Rep Speak to a Rep
Find Specs Find Specs

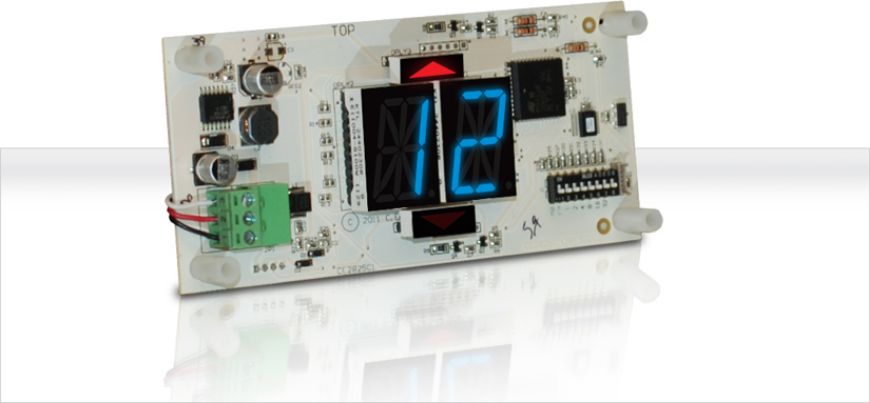

Picture of 1" Double Character / Dual Direction Arrows

1" Double Character / Dual Direction Arrows

Top and Bottom Stacked Arrow Orientation / Horizontal Board / Micro Comm Segmented PI
SKU: MH110

Segmented LED, digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed in single-digit floor designations. Arrow can be centered over right digit when required.



Documentation:

Typical Applications:

> Car-OP Panel

> Transom-car or Hall

> Surface mount fixtures

Features:

> Fast, 3-wire hookup

> Latched inputs

> Cross wire protected

> Self Testing

> Alternate message

> Passing chime output

> Error detection and correction feature

Dimensions:

> FLUSH MOUNT: 5.75"W x 2.7"H x 1.75"D

> SURFACE MOUNT: 5.75"W x 2.7"H x .875"D

Notes:

1. This is not a stand-alone unit. Must be used in conjunction with a MICRO COMM interface.

2. For single-digit display, consult factory.
