1" Double Character / Dual Direction Arrows

Top Stacked Arrow Orientation / Vertical Board / Micro Comm Segmented PI
MV210
Micro Comm Displays;
Speak to a Rep Speak to a Rep
Find Specs Find Specs

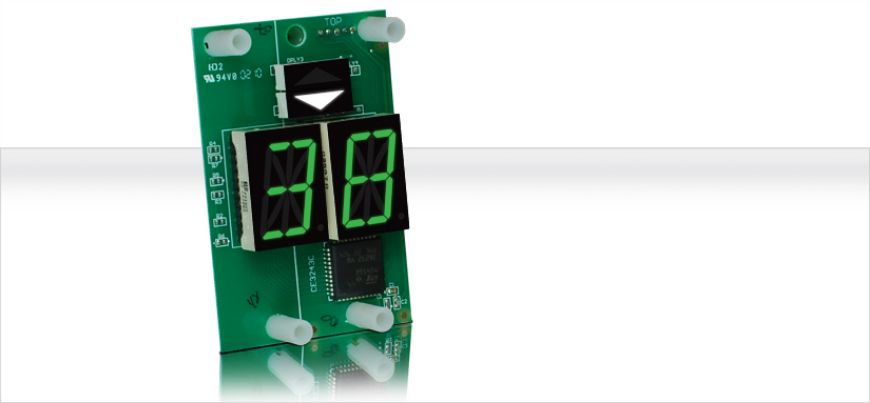

Picture of 1" Double Character / Dual Direction Arrows

1" Double Character / Dual Direction Arrows

Top Stacked Arrow Orientation / Vertical Board / Micro Comm Segmented PI
SKU: MV210

Segmented LED, digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed in either single or double digit floor designations.

Documentation:

Typical Applications:

> Hall stations
> Lobby and security panels

Features:

> Fast, 3-wire hookup
> Latched inputs
> Cross wire protected
> Self-testing
> Alternate message
> Passing shime output
> Error detection and correction feature

Dimensions:

> 2.40"W x 3.6"H x 1.80"D  |  1" CHARACTER

Notes:

1. This is not a stand-alone unit. Must be used in conjunction with a MICRO COMM interface.

2. Can not have red lens with a non-red display.
